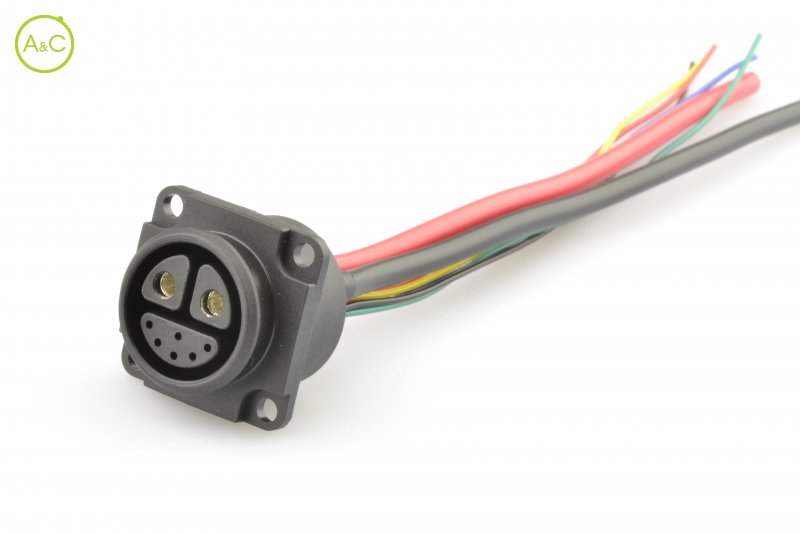

Female panel mount connector, self-locking

  • Self-locking, button release

Number Of Poles

  • 8 (2+6)
Article Number S824BM C 03 FS 0300
Color Black

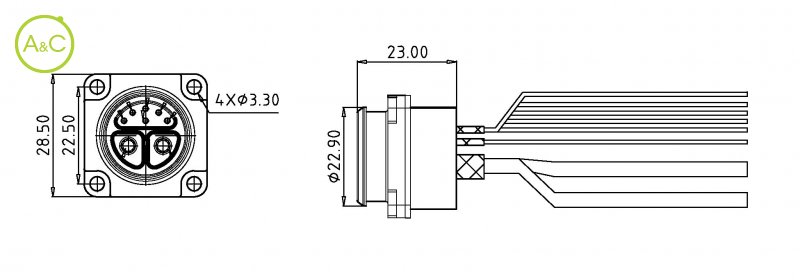

Connector Diameter 22.9 mm
Wire Section 2 x 4,0 + 6 x 0,20 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 40 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Eigenschappen verschillen tussen varianten en subvarianten
