Higo
Number Of Poles
- 8 (2+1+5)

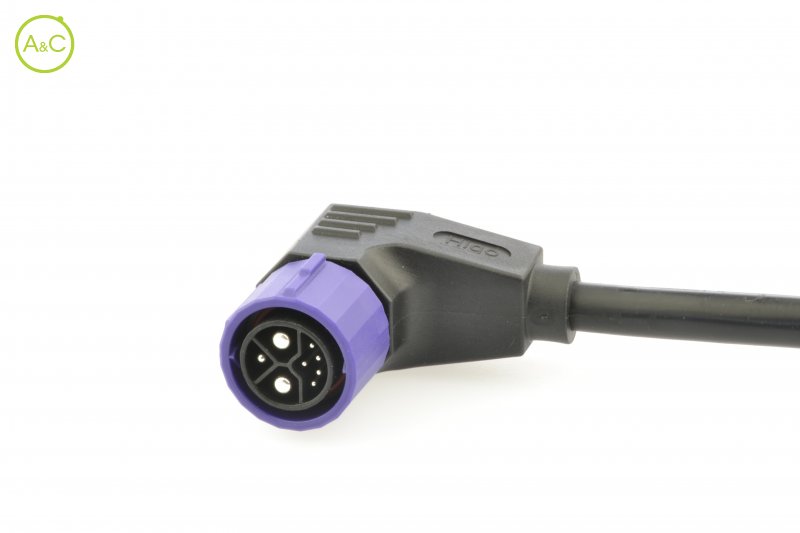

| Article Number | S828BG A 00 CD 1000 |
| Color | Black/Purple |
| Connector Diameter | 28 mm |
| Wire Section | 2 x 10AWG+ 1 x 18AWG + 5 x 22AWG mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper alloy |
| Cable Diameter | 10 mm |
| Insulation Wire | Teflon |
| Remark | Other cable length/type on request |
| Rated Current | 50 / 15 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Silver plated |
| Fitting Length | 50 mm |
| Material Jacket | PVC |
Eigenschappen verschillen tussen varianten en subvarianten
