Male Terminal AWG 22 to 18

  • SAC CONNECTOR
Download product sheet

Applicable Wire

  • AWG 18
  • AWG 22 to 18
Article Number SAITW-A02GF-064 SAITW-A02T-064
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
General Description Sealed Connector Sealed Connector
Applicable Wire Size 0.75 to 0.85 (AWG #18) mm² 0.75 to 0.85 (AWG #18) mm²
Connection Type Automotive Automotive
Pitch / Style 2.54 mm 2.54 mm
Rated Current (ac/dc) 5 A 5 A
Rated Voltage (ac/dc) 14 V 14 V
Remark Nickel-undercoated Tin-plated
Eigenschappen verschillen tussen varianten en subvarianten

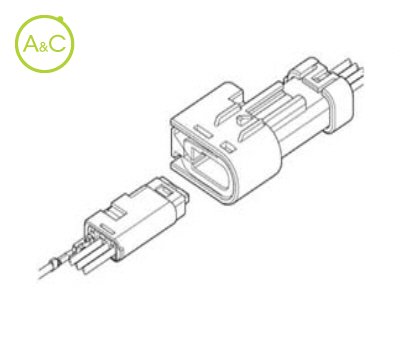

Miniaturized 0.64mm sealed wire-to-wire connector for automotive application. Ultra miniaturized 0.64 sealed female connector for extremely tight packaging conditions RoHS Compliant
