Pin

  • SDF TERMINAL
Download product sheet

Shape

  • B
Article Number RT-01T-1.3B
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Single-Circuit Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style Single-Circuit mm
Rated Current (ac/dc) 5 A
Pcb Mount Style Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

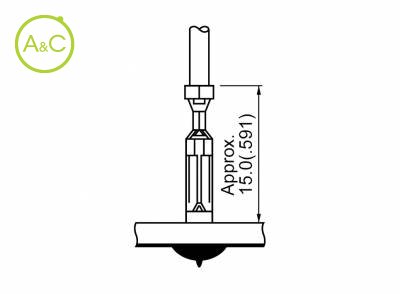

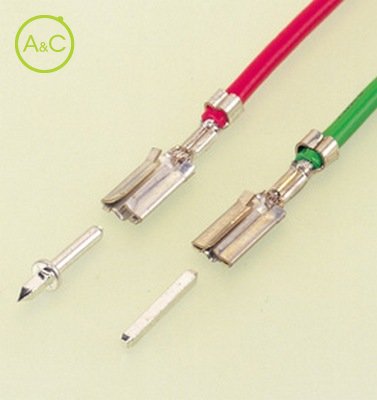

This terminal is used for 1.3mm (.051") diameter and 1.0mm (.039") square contacts. It can connect wires on high-density printed circuit boards in the same manner as JST's SMF connectors. The terminal provides a high pressure connection to the post for exceptional reliability. RoHS Compliant
