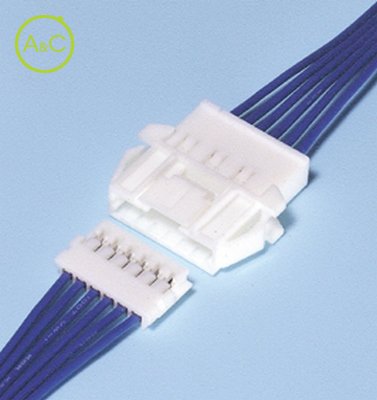

  • THR CONNECTOR
Download product sheet

Applicable Wire

  • AWG 26 to 22
Article Number SHR-001T-P0.6
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type Wire to Wire Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 2 A
Rated Voltage (ac/dc) 250 V
Eigenschappen verschillen tussen varianten en subvarianten

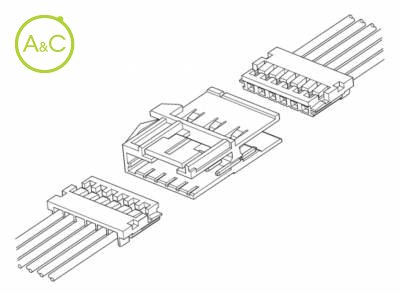

Matable with HR Receptacles. Both crimp style and insulation displacement HR connector receptacles can be accommodated by the THR connector. Both crimp style and insulation displacement receptacles can be used Both crimp style and insulation displacement HR connector receptacles can be accommodated by the THR connector. Arm lock mechanism An arm lock mechanism securely holds the plug and the receptacle together when they are connected. Releasing the lock is easy. Mountable on a variety of panels Due to our unique panel installation locking mechanisms, the housing can be easily installed on panels of various thickness without using tools. RoHS Compliant
