Receptacle Contact AWG 28 to 16

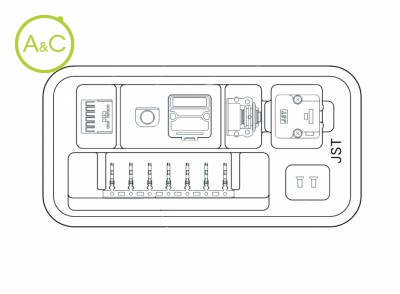

  • JFA CONNECTOR J3700 Series
Download product sheet

Applicable Wire

  • AWG 20 to 16
  • AWG 24 to 20
  • AWG 28 to 24
Article Number SJ3F-002GF-P1.8
Upper Temperature +105 °C
Lower Temperature -55 °C
General Description 3.8mm Pitch Connector Kit for Motor
Applicable Wire Size 0.08 to 0.20 (AWG #28 to #24) mm²
Connection Type Factory Automation Connectors
Pitch / Style 3.8 mm
Rated Current (ac/dc) 10 A
Rated Voltage (ac/dc) 250 V
Remark Waterproof
Eigenschappen verschillen tussen varianten en subvarianten
6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
