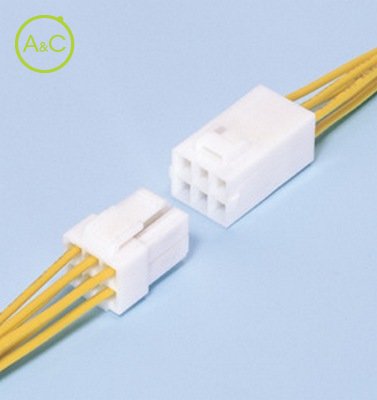

Receptacle Housing For Pin Contact

  • SL CONNECTOR
Download product sheet

Number Of Poles

  • 1
  • 2
  • 3
  • 4
  • 6
Article Number SLR-01VF
Number Of Contacts 1
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 3.96mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors
Pitch / Style 3.96 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 300 V
Remark Secure locking device
Extra Information /
Eigenschappen verschillen tussen varianten en subvarianten

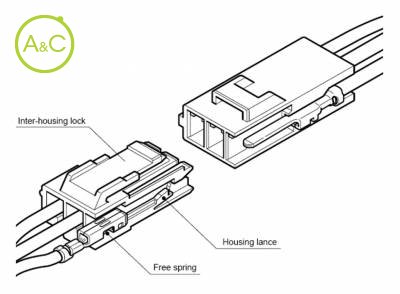

Low insertion force contacts reduce surface wear and reduce the effects of stress relaxation. Low insertion force contact The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation. Housing lance The resilient plastic housing lances secure the contacts in the housing. Since the lances are in the housings rather than on the contacts, they are not affected by handling, and allow the contacts to be lightly inserted without undue force. This establishes a feeling of uniform insertion and a noticeable change in that feeling when insertion is completed. Inter-housing lock This inter-housing lock secures the plug to the receptacle and prevents accidental diSConnection. The lock is protected and is not affected by external forces that might result from the routing of wires. Standards UL Recognized E60389 CSA Certified LR20812 TUV R9351104 RoHS Compliant
