Female Terminal

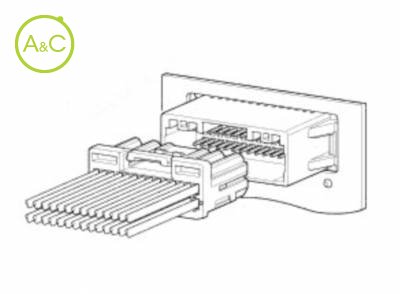

  • BMD CONNECTOR
Download product sheet

Applicable Wire

  • AWG 22 to 20
Article Number SNAC3-A021T-M0.64
Upper Temperature +105 °C
Lower Temperature -30 °C
General Description 2.20mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.3 to 0.5 (AWG #22 to #20) mm²
Connection Type Automotive
Pitch / Style 2.20 mm
Rated Current (ac/dc) 5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Eigenschappen verschillen tussen varianten en subvarianten
Surface mounting type connector of bottom entry type developed for instruments for automobile. High reliability Using the tried and true terminal ensures high performance and high reliability. The retainer (secondary lock) is provided for automobile, and reliability is improved. Surface mounting Corresponding to the surface mounting, workability is improved. RoHS Compliant
