Pin Contact AWG 20 to 18

  • WPK CONNECTOR
Download product sheet

Applicable Wire

  • AWG 20 to 18
Article Number SWPKP-21T-0.6
Upper Temperature +105 °C
Lower Temperature -40 °C
General Description Single-Circuit Disconnectable Crimp Style
Applicable Wire Size 0.5 to 0.85 (AWG #20 to #18) mm²
Connection Type Wire to Wire Connectors
Pitch / Style Single-Circuit mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 12 V
Remark Secure locking device Waterproof
Eigenschappen verschillen tussen varianten en subvarianten

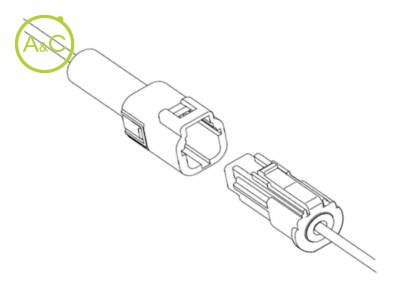

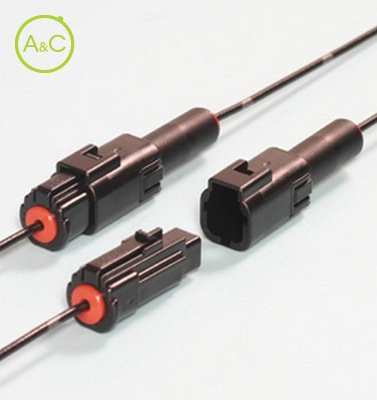

The WPK series connector is a single circuit wire-to-wire 'water proof' connector that has a 7.0 Amp current rating, using wire size 0.5~0.85mm2. Originally designed for automotive applications, the connector features a strong inner housing lock mechanism to mitigate the effect of external forces, and a flat contact spring configuration to maintain excellent excellent electrical performance in testing environmental conditions. Waterproof performance High waterproof performance is 7 ingress protection of JIS C 0920 (IEC 60529 IPX7). Contained seal ring Seal ring is completely contained in housing and protects from dust, SCratch, etc. from outside. Proven contact configuration Contact has adopted the spring configuration of flat quick connect terminal to ensure a good connection at all times. Inner-housing lock This inner-housing lock, prevented from influence of external force due to the routing of wires, has adopted to mate securely plug and receptacle housing. Compact design Wire-to-wire waterproof type connector with maximum outside dimensions as 12.2mm (.480") long and 10.4mm (.490") wide is designed. RoHS Compliant
