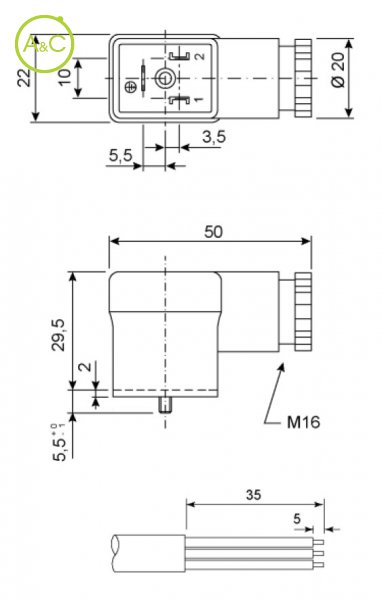

Style B rectangular connector

  • Red Led + varistor
Download product sheet

Housing Colour

  • Transparent
Article Number VF63 23A2R 3 0 S000 VF63 23A4R 3 0 S000 VF63 23A6R 3 0 S000 VF63 23A9R 3 0 S000
Protection Degree IP65 IP65 IP65 IP65
Upper Temperature +70 °C +70 °C +70 °C +70 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Contact Type Spring contact Spring contact Spring contact Spring contact
Housing Material PA66 30%GF PA66 30%GF PA66 30%GF PA66 30%GF
Circuits Red Led + varistor Red Led + varistor Red Led + varistor Red Led + varistor
Housing Oil Resistance Good Good Good Good
Contact Material Nickel plated CuZn Nickel plated CuZn Nickel plated CuZn Nickel plated CuZn
Max. Wire Section 1,5 mm² 1,5 mm² 1,5 mm² 1,5 mm²
Other Characteristics M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron
Voltage Vdc 1 to 38 1 to 80 1 to 170 1 to 250
Voltage Vac 1 to 30 1 to 60 1 to 130 1 to 250
Max. Currrent 10 A @40°C 10 A @40°C 10 A @40°C 10 A @40°C
Clamping Voltage 38..104 V 80..165 V 170..340 V 320..640 V
Eigenschappen verschillen tussen varianten en subvarianten
