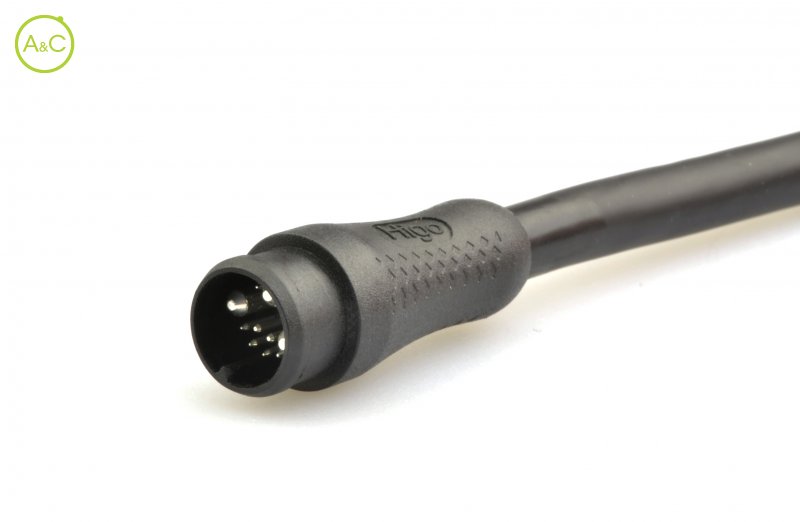

Male cable connector

Number Of Poles

  • 11 (3+8)
Article Number Z1115AGP 00 DU 1000
Color Black

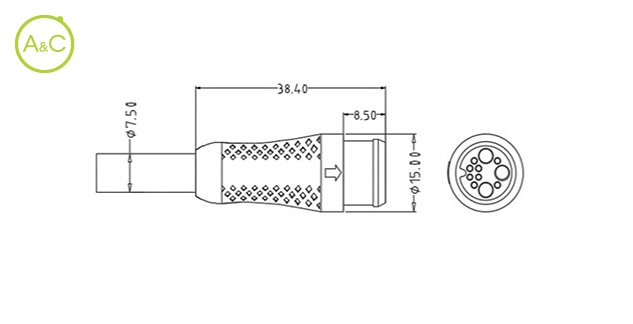

Connector Diameter 15 mm
Wire Section 3 x 2,5 + 8 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 7.5 mm
Insulation Wire PTFE
Remark Other cable length/type on request
Rated Current 25 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 70 mm
Material Jacket PVC
Eigenschappen verschillen tussen varianten en subvarianten
