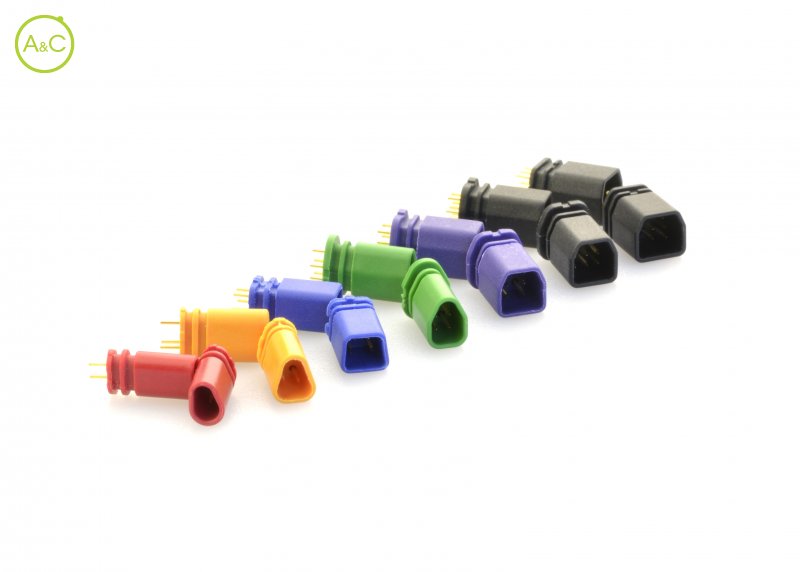

Mini F male panel mount connector

  • Straight PCB contacts

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 9
Article Number Z209FG C 04 00 0000
Color Red

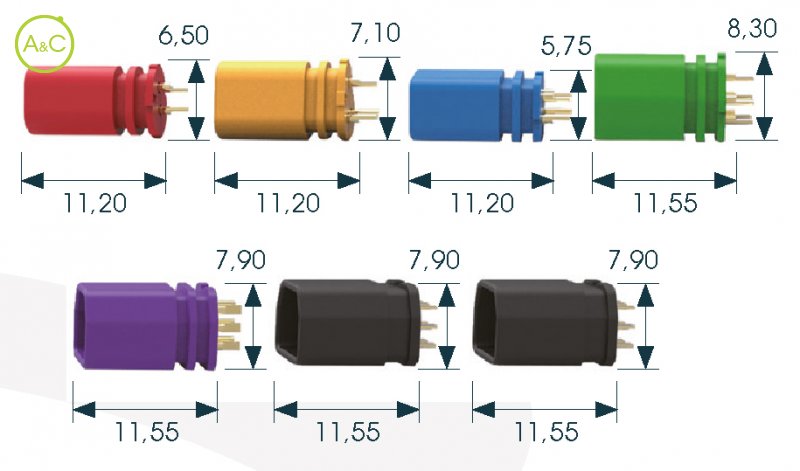

Connector Diameter 6,5 x 6,3 mm
Protection Degree IP66/IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Contact Type Straight PCB contacts
Eigenschappen verschillen tussen varianten en subvarianten
