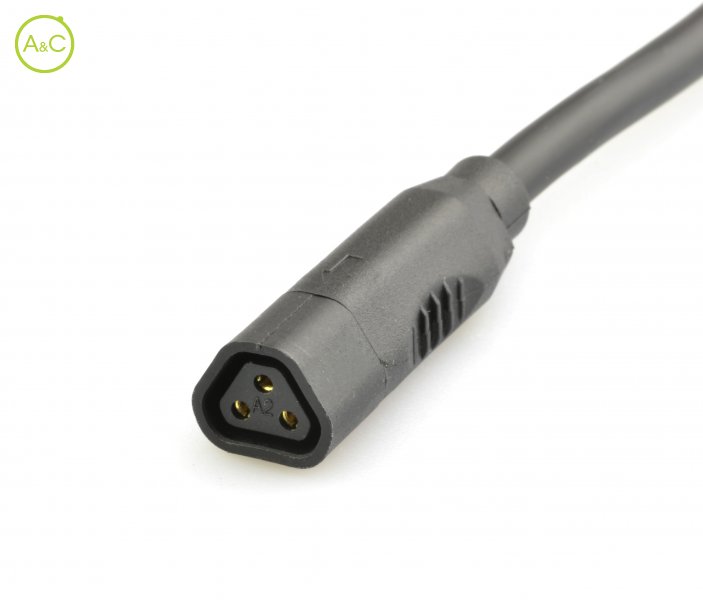

Female cable connector

Number Of Poles

  • 3
Article Number Z310DM P 00 FC 1000
Color Black

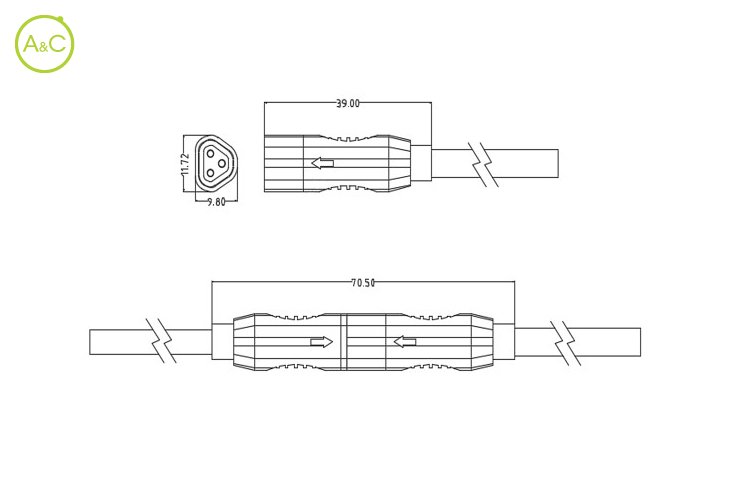

Connector Diameter 11,72 x 9,8 mm
Wire Section 3 x 1,2 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 5 mm
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 15 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 71 mm
Material Jacket PVC
Eigenschappen verschillen tussen varianten en subvarianten
