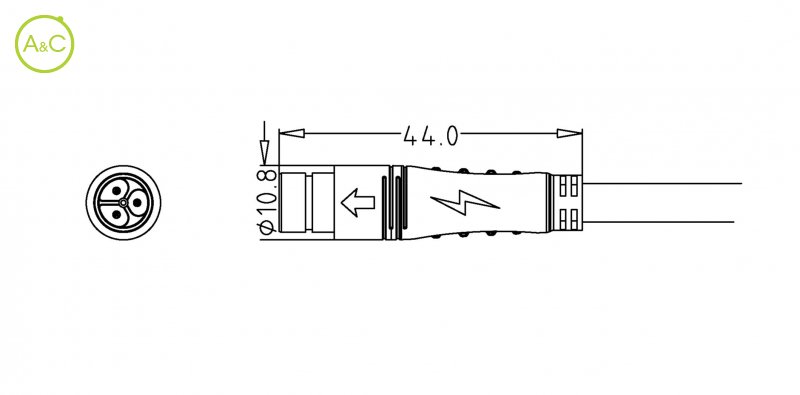

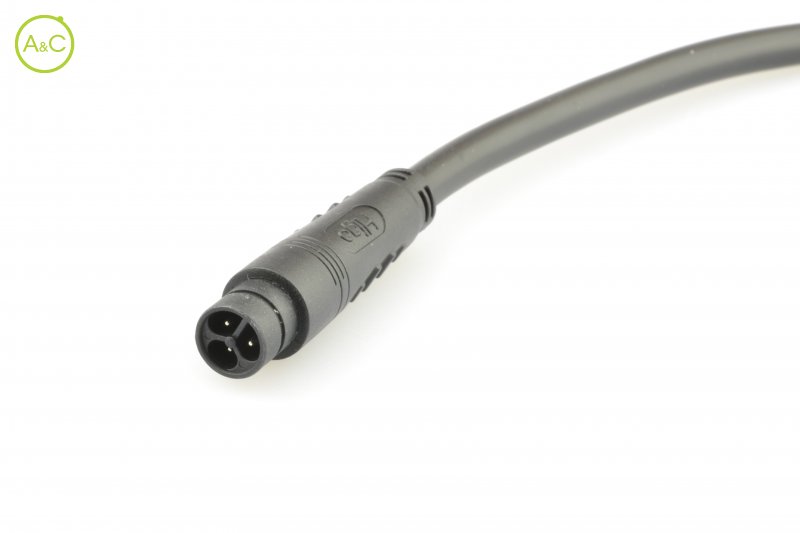

Male cable connector, no locking (push-on)

Number Of Poles

  • 3
Article Number Z311AG P 00 FJ 1000
Color Black
Connector Diameter 10.8 mm
Wire Section 3 x 0,5 mm²
Cable Length 1000 mm
Protection Degree IP66
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 5 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Material Jacket PVC
Eigenschappen verschillen tussen varianten en subvarianten
