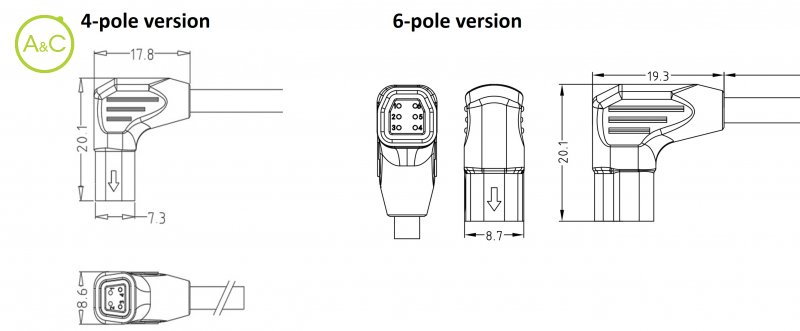

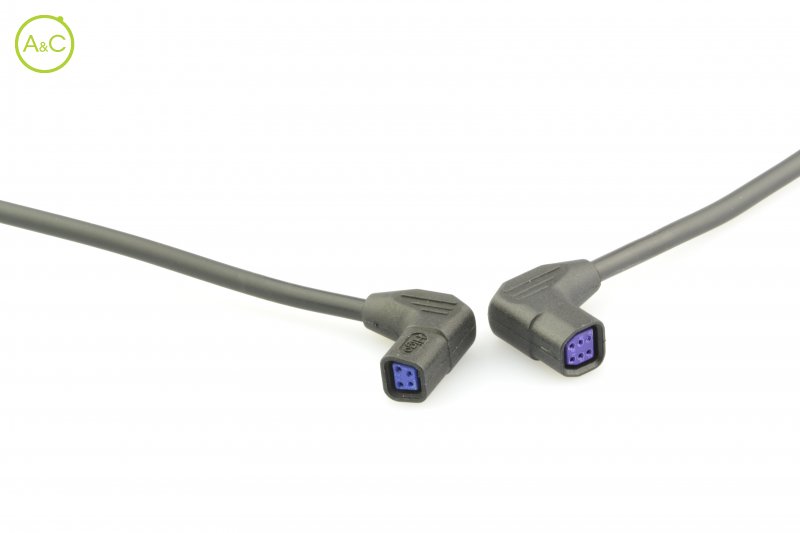

Mini F Female angled plug connector

Number Of Poles

  • 4
  • 6
Article Number Z409FM A 00 A2 1000 Z409FM A 00 AY 1000
Color Blue Blue
Connector Diameter 8,6 x 7,3 mm 8,6 x 7,3 mm
Wire Section 4 x 0,14 mm² 4 x 0,14 mm²
Cable Length 1000 mm 1000 mm
Protection Degree IP66 IP66
Mating Cycles 200 times 200 times
Upper Temperature 80 °C 80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ
Material Of Contact Copper Alloy Copper Alloy
Cable Diameter 3.7 mm 3.7 mm
Insulation Wire PVC Teflon
Remark Other cable length/type on request Other cable length/type on request
Rated Current 2 A 2 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel
Fitting Length 20 mm 20 mm
Material Jacket PVC TPU
Eigenschappen verschillen tussen varianten en subvarianten
