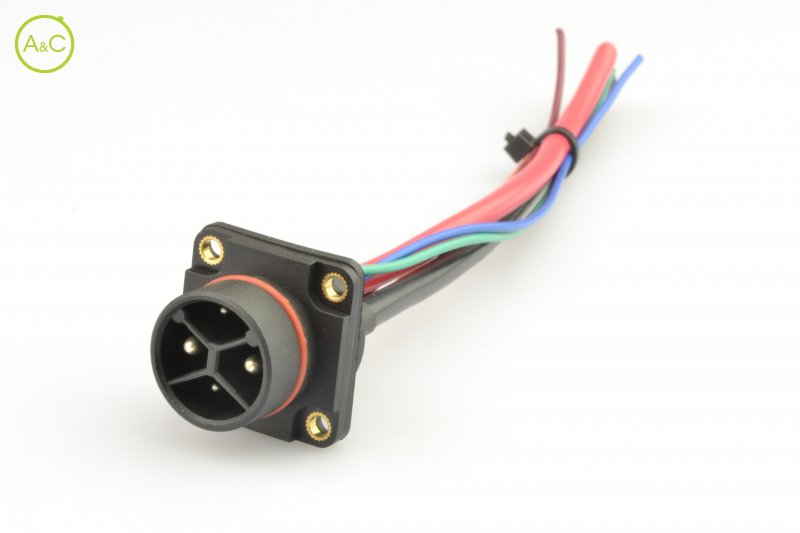

Battery male panel mount connector 48V code, no locking (push-on)

  • Only for use in 48V applications

Number Of Poles

  • 6
Article Number Z624BG C 03 D1 0150
Color Black
Connector Diameter 28.5 mm
Wire Section 2 x 2,0 + 4 x 0,34 mm²
Cable Length Single wires 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor bronze
Remark Other cable length/type on request
Rated Current 25 / 5 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Eigenschappen verschillen tussen varianten en subvarianten
