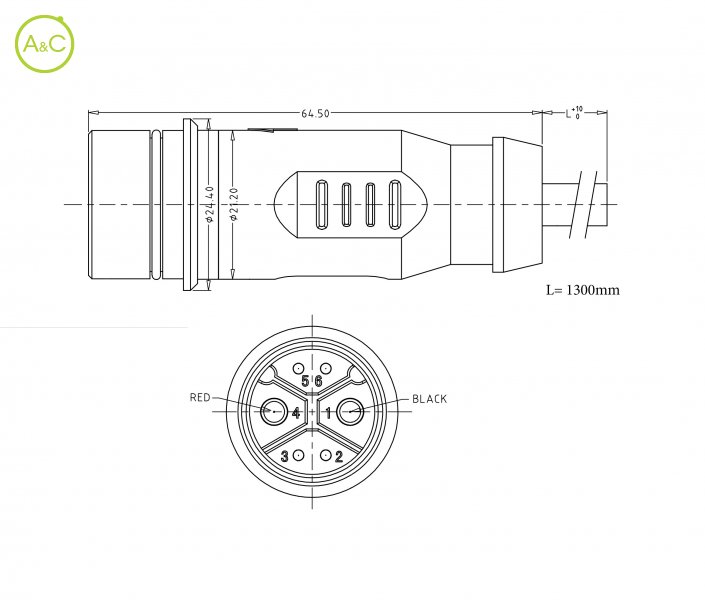

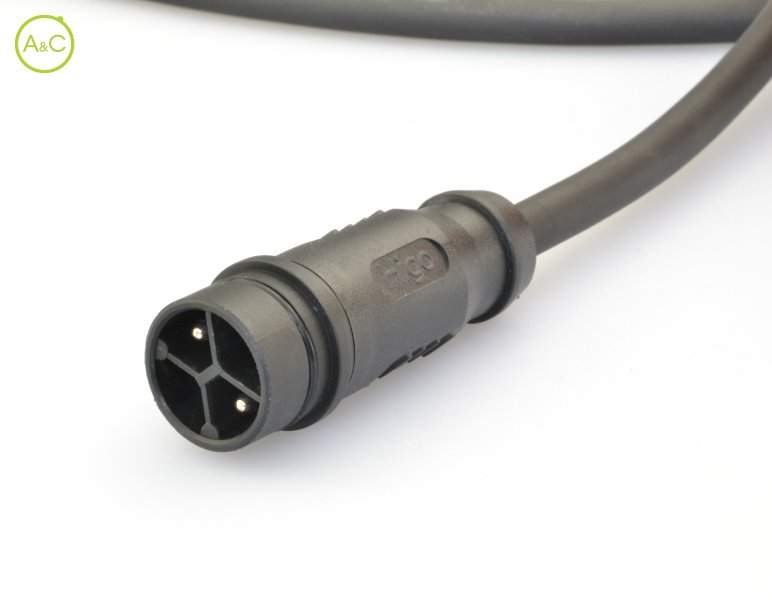

Battery male plug connector 48V code, no locking (push-on)

  • Only for use in 48V applications
Download product sheet Download product sheet

Number Of Poles

  • 6 (2+4)
Article Number Z624BG P 00 B7 1000
Color Black
Connector Diameter 21.2 mm
Wire Section 2 x 2,0 + 4 x 0,34 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 45 / 5 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver over Nickel
Material Jacket TPU
Eigenschappen verschillen tussen varianten en subvarianten
