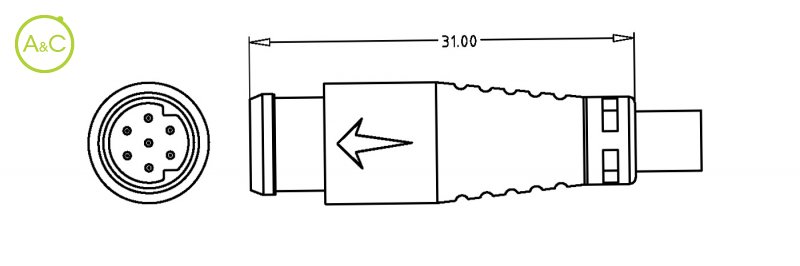

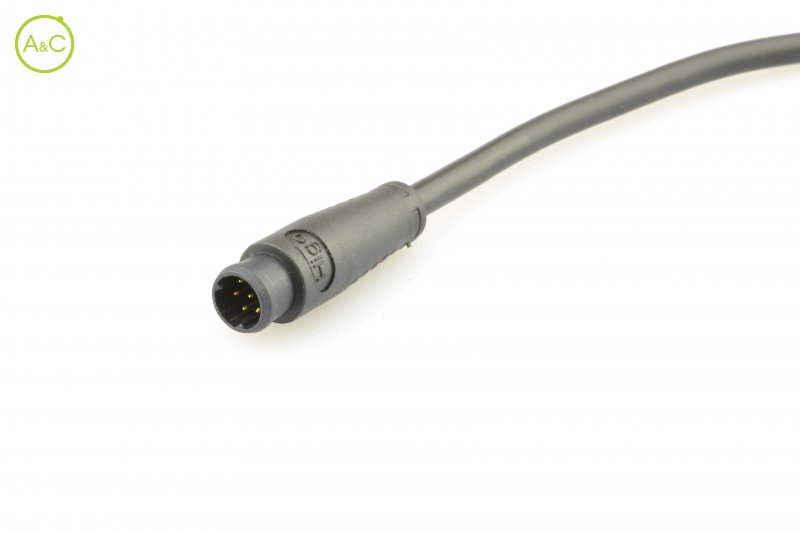

Male cable connector

Number Of Poles

  • 7
Article Number Z710AG P 00 FL 1000
Color Black
Connector Diameter 9.7 mm
Wire Section 7 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IPX7
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 55 mm
Material Jacket PVC
Eigenschappen verschillen tussen varianten en subvarianten
