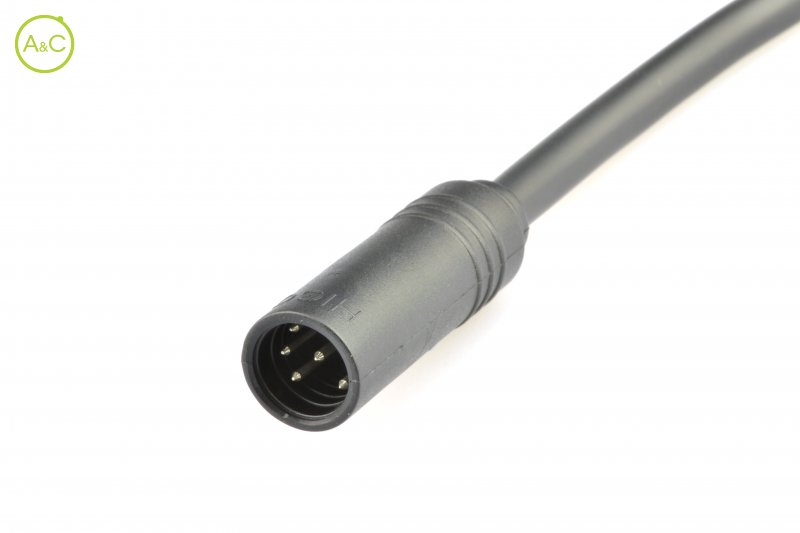

Main male plug connector

Download product sheet Download step file

Number Of Poles

  • 8
  • 9
  • 10
Article Number Z812AG P 00 A5 1000
Color Black
Connector Diameter 12 mm
Wire Section 0.2 mm²
Cable Length 1000 mm
Protection Degree IP66
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 5.8 mm
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 67 mm
Material Jacket PVC
Eigenschappen verschillen tussen varianten en subvarianten
