Receptacle Housing

  • ZH CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 9
  • 13
Article Number ZHR-13
Number Of Contacts 13
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

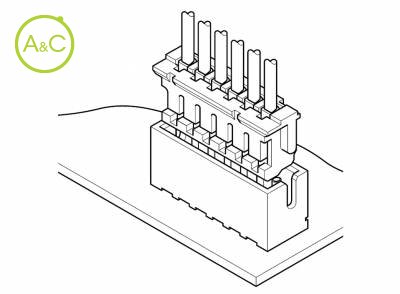

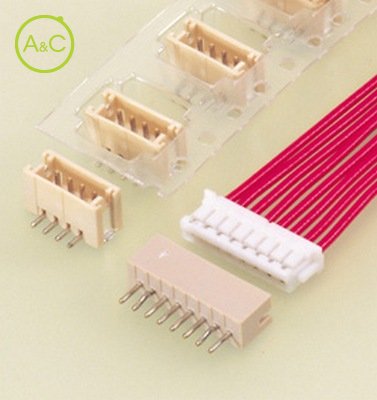

The ZH connector (Sometimes known as the 'JST Micro Connector') is very small with a mounting height of 5.6mm (.220") and a thickness of only 3.5mm (.138"). Contact retention lances on the housing make insertion easier, while the dimple at the centre of the contact ensures reliable contact with the post. Compact, low profile design The ZH connector requires only about 45% of the installation space required by the standard JST 2.0mm (.079") pitch connector. Housing lances The contact retention lances on the resilient housing allow visual confirmation of contact lock-in for easy and secure insertion. Reliable contact construction The dimple at the centre of the contact ensures positive contact and low contact resistance at all times, even when the connector is subjected to vibration or distortion. Therefore this connector is ideal for use under low current, low voltage conditions. Compatible with the ZR insulation displacement connectors The same shrouded header can be used for either the ZR IDC style connector or the ZH crimp style connector. This allows both types of connector to be used interchangeably without replacing the header. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9351092 RoHS Compliant
