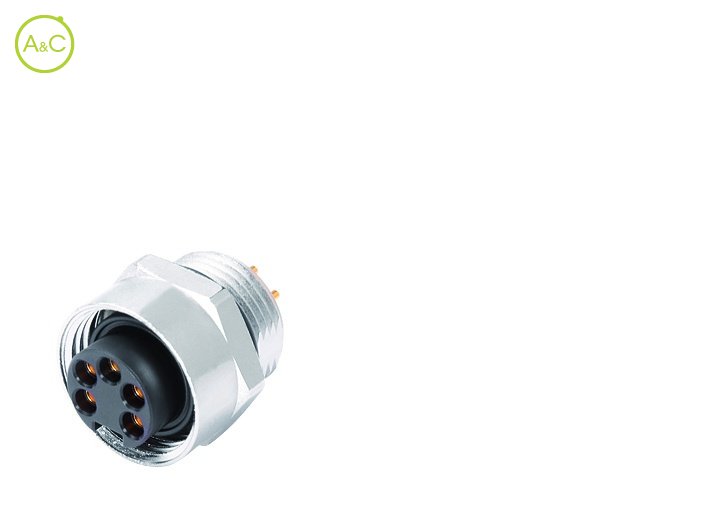

Female panel mount connector

  • Dip solder contacts
  • UL-approval

Number Of Poles

  • 2+PE
  • 4
  • 4+PE

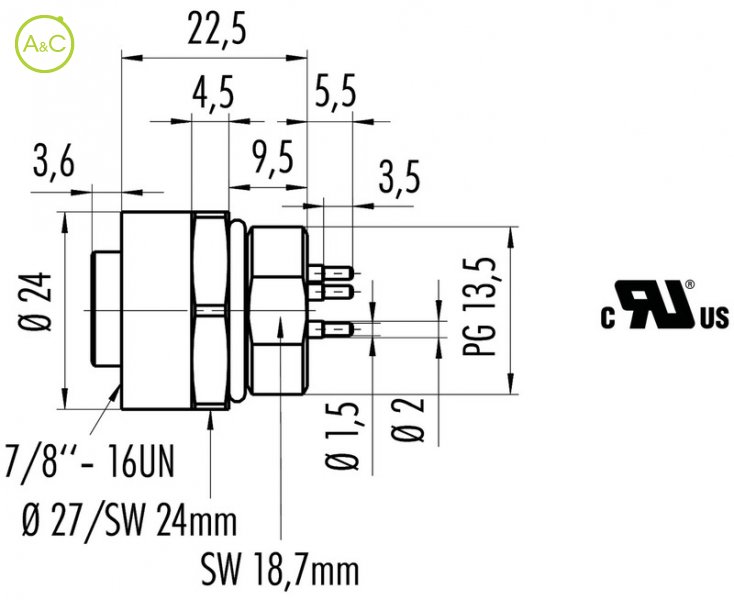

Article Number 09 2446 330 03
Connector Diameter 27 mm
Number Of Contacts 2+PE contacts
Connector Locking System Screw (7/8"-16 UN)
Termination Dip solder
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 300 (UL 600)
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 10 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PUR (UL 94 HB)
Material Of Housing Brass nickel plated / zinc diecasting nickel plated
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
