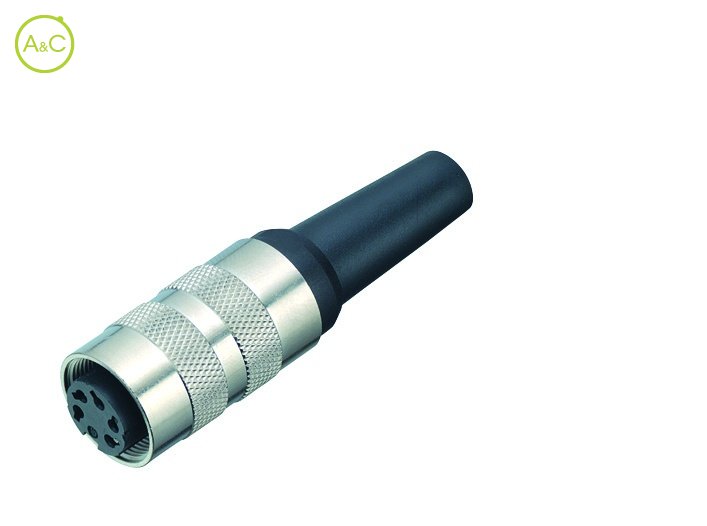

Female cable connector

  • With cable clamp, screw clamp connection, shieldable

Number Of Poles

  • 3
  • 4
  • 5
Article Number 99 2006 220 03

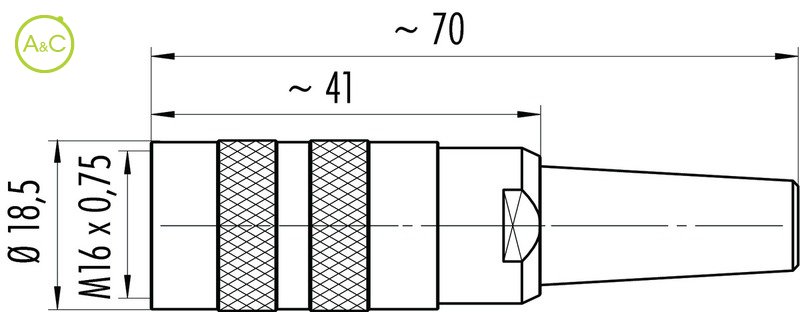

Connector Diameter 18.5 mm
Number Of Contacts 3 contacts
Connector Locking System Screw (M16)
Termination Screw
Wire Section 0,25 - 1,5 mm²
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250 (32)
Rated Impuls Voltage 1500 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 7 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Ag (Silver) or Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing CuZn (Brass nickel plated)
Cable Outlet 6-8 mm
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
