Connector for DIMM Socket

  • DM-72P CONNECTOR
Download product sheet
  • General
Article Number DM-2D4-N3200
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.27mm Pitch Socket for DIMM
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.27 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Surface Mount Technology (SMT)
Eigenschappen verschillen tussen varianten en subvarianten

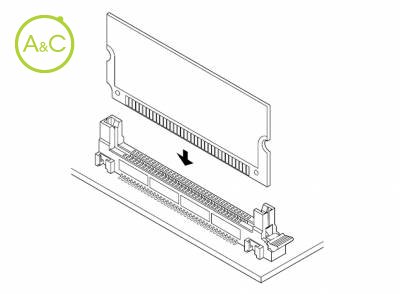

Standardized by the JEDEC (MO-160). The DM connector is the straight type of the DIMM socket, applicable to the module PC board whose operating voltage is 3.3V. Easy module ejecting The module can be disengaged easily by using the eject button. 14mm (.551") height With its 14mm (.551") height, the DM connector is applicable to various equipment. Standards UL Recognized E60389 RoHS Compliant
